Precision Metrology in Optical Manufacturing: Addressing Wedge Angle Deviation with OWADMS-01

In the production of high-precision optical components—such as windows, prisms, and filters—maintaining the parallelism of two optical surfaces is a critical quality benchmark. For quality control (QC) managers and optical engineers, wedge angle deviation can lead to beam steering errors and compromised system performance. The OWADMS-01 Optical Wedge Angle Deviation Measurement System has established itself as a vital tool for ensuring sub-arcsecond accuracy in mass production.

The Challenge of Parallelism in Optical Fabrication

Wedge angle, or the unintended angular deviation between two supposedly parallel surfaces, often occurs during the grinding and polishing stages. Traditional manual measurement methods using basic autocollimators are frequently limited by:

1. Operator Subjectivity: Human error in reading visual scales.

2. Throughput Bottlenecks: Manual alignment takes minutes per part, which is unsustainable for large batches.

3. Data Traceability: Lack of automated digital records for compliance and quality audits.

The OWADMS-01 addresses these challenges by integrating high-resolution digital imaging with automated calculation software, transforming a complex metrology task into a streamlined process.

Key Technical Specifications of OWADMS-01

To ensure data-driven procurement decisions, the following table details the performance parameters of the Jeffoptics OWADMS-01 compared to industry entry-level alternatives:

Optimizing Quality Control: Detection and Analysis

The OWADMS-01 system utilizes a double-reflection principle to detect surface deviations. When an optical component is placed on the precision stage, the system analyzes the return images from both the front and back surfaces simultaneously.

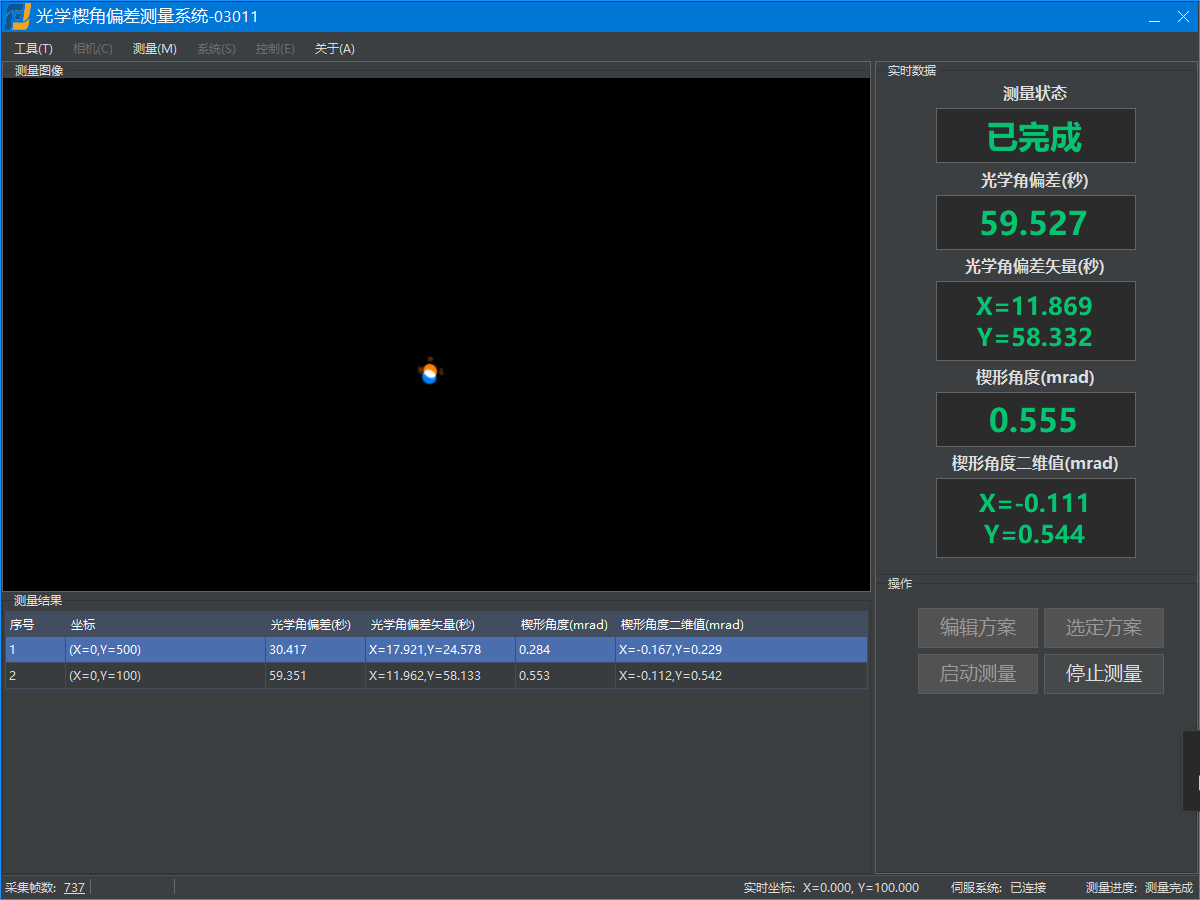

• Real-time Deviation Calculation: The software instantly calculates the wedge angle based on the separation of the reflected spots.

• Surface Quality Assessment: Beyond simple angles, the high-resolution sensor can identify significant surface irregularities that may affect the measurement.

• Automated Pass/Fail Sorting: Operators can set tolerance thresholds (e.g., < 30 arcsec), allowing the system to instantly flag non-compliant components.

Technical Insight: For components used in laser systems, even a deviation of 10 arcseconds can cause significant refractive errors. The OWADMS-01 provides the precision necessary for high-end aerospace and medical imaging applications.

Strategic Applications for B2B Buyers

Implementing the OWADMS-01 system into a production line offers several operational advantages:

• Increased Yield Rates: Early detection of wedge defects during the intermediate polishing stage prevents the waste of finished coatings.

• Rapid Integration: The USB-based digital interface allows for easy setup in cleanroom environments.

• Global Compliance: Measurement results are traceable to international standards, meeting the stringent requirements of ISO optical quality protocols.

Conclusion: Precision as a Competitive Edge

In an industry where the difference between a high-performing lens and a defect is measured in arcseconds, the OWADMS-01 Optical Wedge Angle Deviation Measurement System provides the objective, repeatable data required for modern optical manufacturing. By moving from manual inspection to digital precision, manufacturers can significantly enhance their reputation for quality.

Contact Our Technical Team

Are you looking to modernize your optical metrology lab or improve your QC throughput?

• Detailed Specifications: Visit OWADMS-01 Product Page

• Request a Demo: Contact Jeffoptics for a remote demonstration of the measurement software.

• Custom Solutions: We provide customized measurement ranges and fixtures for non-standard optical geometries.
